- 1/4” IT CCD Renklide 550 TvL/Siyah Beyazda 600 TvLine
- 3.68 mm – 43.53 mm lens F1.65(W)~F1.99(T)
- True Day&Night (ICR), 3D-DNR, X-WDR
- Pan/Tilt Hızı: 0.1˚ ~ 360˚/sn Pan 360°, Tilt 90°
- Electronic Shutter: 1/50 ~ 1/90.000 sn
- RS-485 • IP66
- 144x Zoom, 12x Optik Zoom, 12x Digital Zoom
- 0.1 Lux(Renkli) / 0.0002Lux (S/B, DSS Açık)
- 127 preset Pozisyonu / 8 swing, 4 partion, 8 grup
- OSD, BLC, ECL, İris kontrol (1-100)
- Digital Slow Shutter
- AGC, AIC, AWB, BLC, ATW
- Flickerless – Titreşim önleme
- Otomatik Odaklanma, Oto parking Fonksiyonu
- Electric Flip Fonksiyonu
- Privacy Zone ( 4 zone özel alan belirleme )
- Alarm I/0: 4 giriş, 1 çıkış
- 24 V AC, maksimum 1.5 A (Isıtıcı dahil)
- Çalışma Isısı 0° – 40°C
- Ölçüler: Dome: 116.8(Ø) x 140(H)mm / Muhafaza: 146(Ø) x 140(H)mm
- Ağırlık: 2 kg

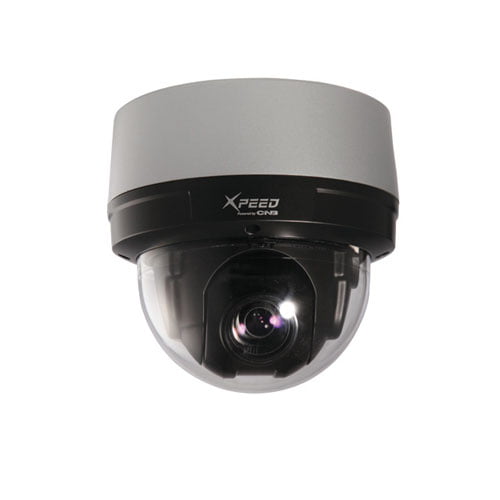

SMB-23Z12F
12X Dahili Mini Speed Dome Kamera
Stok Sorunuz
Açıklama
| Model | SBN – 23 Z 12 F |
| Signal System | PAL |
| Scanning System | 2:1 Interlace |
| Scanning Frequency (H) | 15.625 KHz |
| Scanning Frequency (V) | 50 Hz |
| Image Sensor | 1/4 Inch IT CCD |
| Total Pixels | 795(H) x 596(V) 470K |
| Effective Pixels | 752(H) x 582(V) 440K |
| Horizontal Resolution | 550 TV Lines (B/W 600TV Lines) |
| Video Output Level | 1.0V p-p (75Ω, Composite) |
| S/N Ratio | More than 52dB(AGC Off) |
| Lens | 12x Optical, 3.68(W)mm~43.53(T)mm, F1.65(W) ~ F1.99(T) |
| Digital Zoom Ration | 1x ~ 12x |
| Iris Control | Auto/Manual (0~100) |
| Panning/Tilting Ratio | Pan: 360˚ endless rotation; Tilt: 90 |
| Panning/Tilting Speed | Manual: 0.1˚ ~ 360˚/sec (Zoom Proportional) |
| Preset | 127 position with Labels |
| Swing / Pattern / Group | 8 Swings/4 Patterns (about 5min/Pattern)/8 groups (max. 20) |
| OSD | Multi-Language (English, Chinese, Spanish, Portuguese, |
| Turkish, Russian, Czech, Korean) | |
| Back Light | BLC / WDR / ECL / Off |
| Digital Slow Shutter | Off / Auto(x2~x128) |
| 3D-DNR | Low / Middle / High / Off |
| White Balance | AWB / ATW / Manual (Red, Blue Gain, Adjustable) |
| Brightness Control | Adjustable (0~100) |
| Power-up Action | Resume the last action executed (Preset, Swing, Group) |
| Auto Parking / Flip | ON/OFF; Flip (Flips the image when the Tilt angle goes over 90˚) |
| Auto Parking / Flip | 4 Inputs, 1 Output |
| Operation Temp. | 0￦frac12;~ +40￦frac12;/ -30￦frac12;~ +50￦frac12;(H |
| Electronic Shutter Speed | 1/50~1/90,000sec. |
| Supplied Voltage | 24VAC |
| Power Consumption | Max. 1.5A (Heater On) |
| Dimensions(ØxH) | Dome: 116.8(Ø) x 140(H)mm / Housing: 146(Ø) x 140(H)mm |
| Weight | Approx. 2.9Kg (with Wall Mount) |
